Super Purchasing for Anti Static Carpet - Anti-static homogeneous vinyl – Linsu Detail:

1.Anti-static homogeneous vinyl dissipative floor has permanent anti-static function because it uses conductive static network formed at the interface of plastic particles along with the common homogeneous vinyl floor performance such as waterproof,flame retardant,wear resistant,sound absorption,chemical resistance etc,when it is grounded or connected to any lower potential point, enables the electric charge to be dissipated. It is characterized by a resistance between 10 2nd power and 10 9th power ohm.

2.Characteristic of Anti-static homogeneous vinyl

Homogeneous compact

Non directional pattern

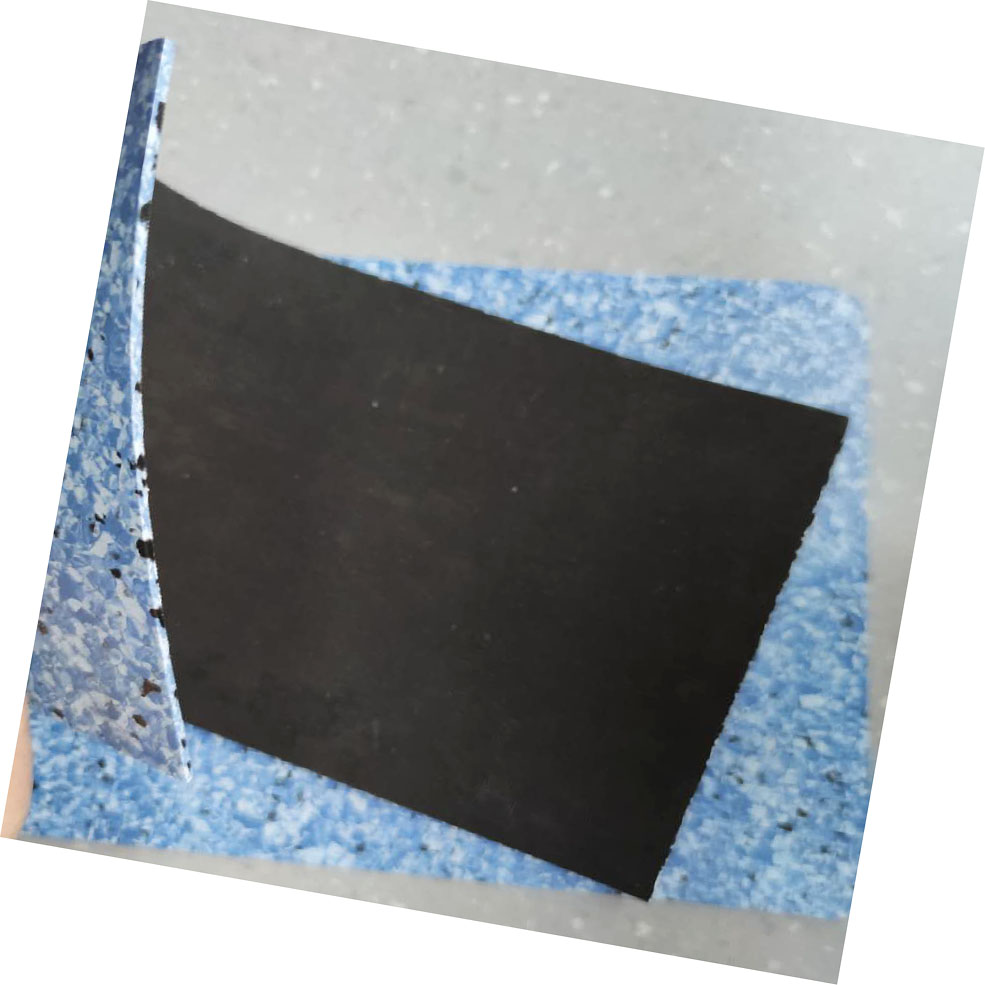

Carbon granules connecting surface to conductive backing.

Black conductive backing makes installation less expense,technically safe

Excellent electrical values for meeting customers’ ESD needs.

homogeneous ESD vinyl floor03
homogeneous ESD vinyl floor04
homogeneous ESD vinyl floor05

6mm*6mm homogeneous vinyl tile

Homogeneous ESD Vinyl Floor4
Homogeneous ESD Vinyl Floor3

3.The products conductive properties have been tested before and after production,in compliance with quality standards.

Fanjingshan series homogeneous vinyl floor2

Characterstics

Standard

Unit

Result

Type of flooring

Marenal Cover

ISO 10581-EN 649

Homogeneous Sheet

Polyvinyl chlonde

majorization king^M

Safety criteria

Flammability	GB 8624-2012	class	Bl
Slip resistance	DIN 51130	group	R9
Dynamic coefficient of friction	EN 13893	class	DS

Formance behaviour

Sheet width	ISO 24341-EN 426	m	2
Sheet length	ISO 24341-EN 426	m	20
Overall thickness	ISO 24346-EN 428	mm	2.0
Total weight	ISO 23997-EN 430	kg/m2kg/㎡	3.1
Wear resistance	EN 649	group	T
Dimensional stability	ISO 23999-EN 434	-	X:＜0.4%
Color fastness	ISO 105-B02	rating	>6
Resistance to staining	EN 423		No Stain 0
Bend resistance	GB/T 11982 2-2015		no crack
Antibacterial	ISO 22196		Class one
Anti iodine			Good
Classification
Domestic	ISO 10874-EN 685	class	23 heavy duty
Commercial	ISO 10874-EN 685	class	34 very heavy duty
Industnial	ISO 10874-EN 685	class	43 heavy duty

Additional property

Castor chair	Antistatic Behavious
Underfloor Heating	Chemical Resistance

Compacted homogeneous floor covering3
ESD homogeneous vinyl floor3

Application

Anti-static floor is widely applied to electronic computer rooms, clean rooms, remote exchange rooms, manufacturing industry of electronic devices, workshops of microelectronic industry, asepsis rooms, central controlling rooms, and workshops which require purification and electronic proof. It is now widely used in banks, post offices, railway, medicine, and microelectronic industries.

ESD homogeneous vinyl floor5

600000 square meters standing stocks, 24000 square meters daily production.
Our flooring are packed carefully, to ensure the goods are delivered in good condition.

Fanjingshan series homogeneous vinyl floor8

The installation

Conductive ESD floor should be installed on Sub floors that are leveled ,smooth and free of cracks ,Residual humibity should be under 2.5% tested with the CM Dumb test . Tiles,adhesive and installation site should reach a temperature of at least 18 at least 24 hours before installation.and paste the tiles with qualified conductive glue below 10 ohm for further details on installation methods.

Installation process of anti-static PVC floor----
